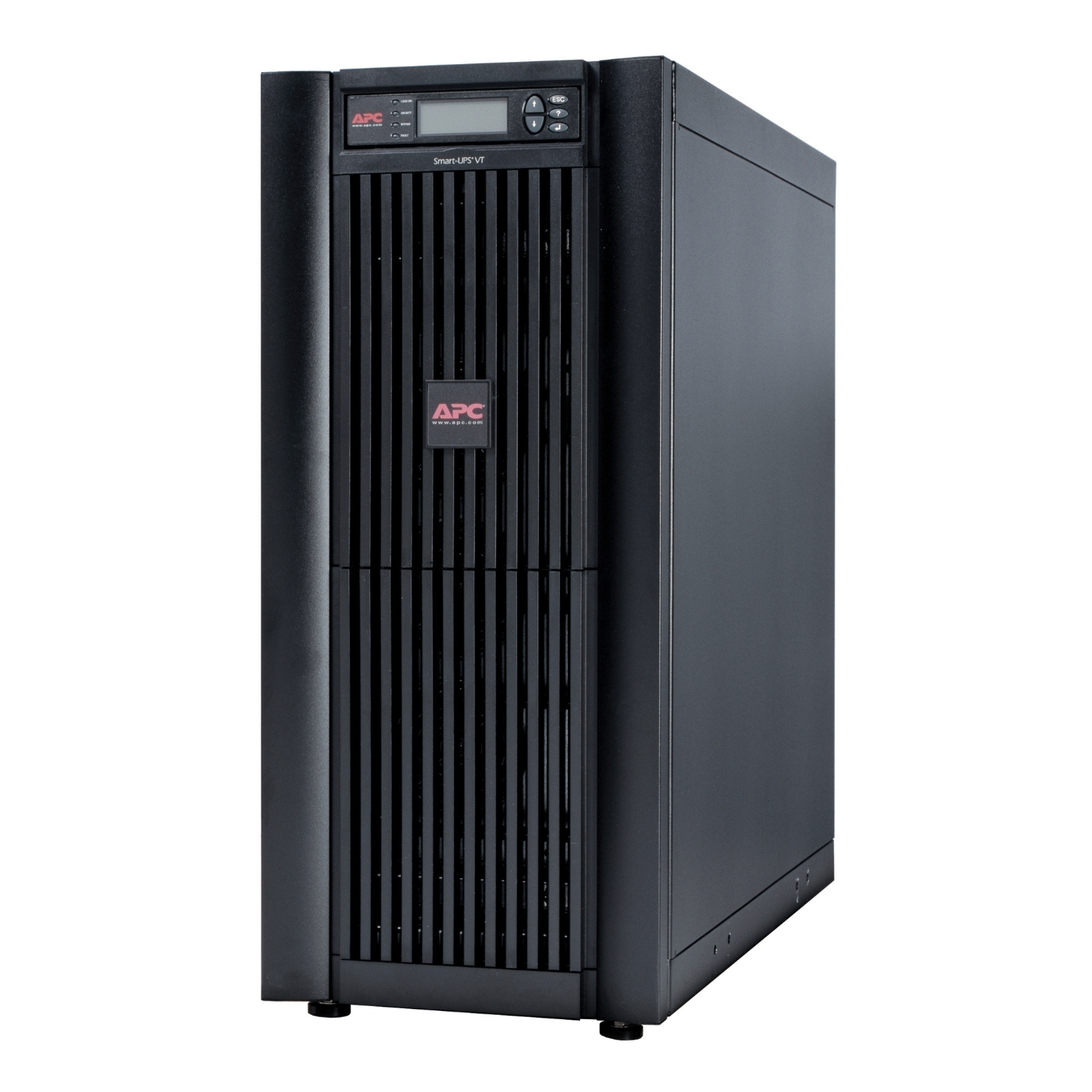

APC Smart-UPS VT系列10-40KVA

APC Smart-UPS VT系列10-40KVA,APC UPS高可用性智能UPS VT包括双电源输入,自动和维护旁路,以及可扩展运行时,带有热插拔电池
快速且易于更换可利用性它与市场***的遥控器兼容管理应用程序

    易于维护

    产品设计允许快速

    故障情况下的维护,导致

    更高的负载可用性。

    >电源模块的滑入/滑出概念

    快速恢复正常状态

    >热插拔电池

    易于更换

    可管理性


  • 产品参数

    易于维护

    产品设计允许快速

    故障情况下的维护,导致

    更高的负载可用性。

    >电源模块的滑入/滑出概念

    快速恢复正常状态

    >热插拔电池

    易于更换

    可管理性


Smart-UPS VT





 “Compact, high-performance power protection with scalable runtime”





10 / 15 / 20 / 30 / 40 kVA – Three-phase

>

Performance 3 Phase Power Protection in Optimized Footprint with Hot Scalable Runtime for Small Data Centers and Other Business Critical Applications





> High Efficiency in Class (96%)

> Small Footprint

> Scalable runtime

> Parallel Capable

Network M


High Availability

The Smart-UPS VT includes dual-mains inputs, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries which are quick and easy to replace for increased availability.



Its compatibility with the market-leading remote management applications, coupled with intuitive LCD user interface and LED status indicators ensures the utmost availability for business critical applications.



A versatile product

The Smart-UPS VT is available in a wide choice of configurations to best fit each specific installation need.

> 10 / 15 / 20 / 30 / 40kVA

> 3 different enclosures, from classic wide or narrow tower to small enclosure without batteries

> Flexible runtime capacity :

- with hot-swappable batteries and extended run enclosures

- with up to 4 internal battery strings and external extended runtime enclosures

> Compatibility with generators, transformers, etc..



Reduced Total Cost of Ownership

Smart-UPS VT intelligent design leads to a significant reduction of the TCO and makes it the ideal choice over time.

> Best-in-class efficiency even at low load levels minimizes energy losses and operating costs

> Compact, small footprint for floor space optimization

> Input power factor correction reduces installation costs

> Reduction of electrical infrastructure rating requirements (wire, transformers, generators…)



UPS Rating kVA/KW (PF = 0.8)

10/8

15/12

20/16

30/24

40/32

AC power supply input

Input voltage (V)

400V (3 Phase)

Frequency (Hz)

47-70 Hz (auto-sensing)

Power Factor

<0,98

Input current total harmonic distortion

Less than 5% for full load

Output

Output voltage (V)

400V (3 Phase)

Frequency (Hz)

47 - 53 Hz (for 50 Hz nominal)

Power Factor

0.8

Overload

150% 1 minute, 125% 10 minutes

Output voltage total harmonic distortion

Less than 5% for full load

Performance

Efficiency (at full load)

95,7%

95,7%

95,3%

96,4%

96,0%

Operating temperature

0-40°C

Paralleling

up to 4 units

Spec feature

For either redundancy or capacity

Dimensions (HxWxD) mm

Wide Tower

1500x523x854

Narrow Tower (10 / 15 / 20 kVA)

1500x352x854

N/A

Small enclosure ( no integrated batteries)

823x352x854

823x523x854

Environmental conditions and noise

Audible Noise (dBA)

64dB (57dB at 70% load)

Operating Temperature

0°C to 40°C (32 to 104 °F)

Operating Relative Humidity

0 to 95%


APC Smart-UPS VT系列10-40KVA
APC Smart-UPS VT系列10-40KVA,APC UPS高可用性智能UPS VT包括双电源输入,自动和维护旁路,以及可扩展运行时,带有热插拔电池
快速且易于更换可利用性它与市场***的遥控器兼容管理应用程序
